Casagrand Massimo

The concept of how you live your daily existence was reimagined into something more distinguished. This is exactly what you will find with Casagrand Massimo, an exclusive residential development located in Kundrathur, Chennai, developed by Casagrand.

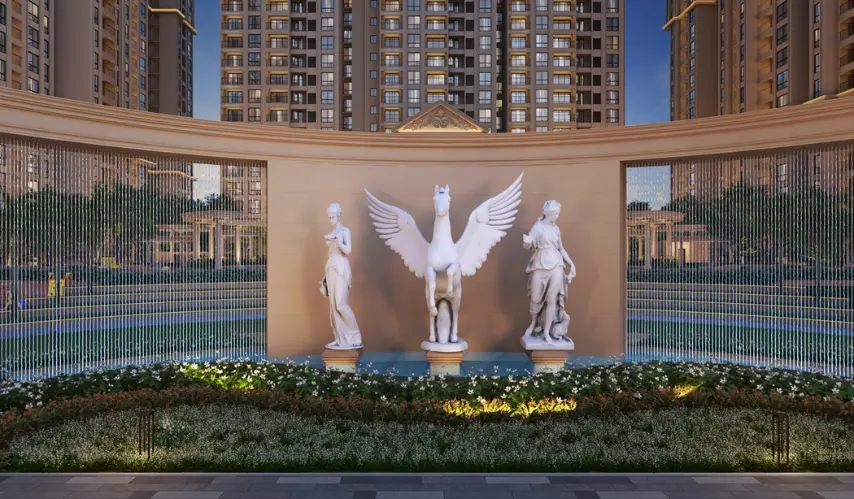

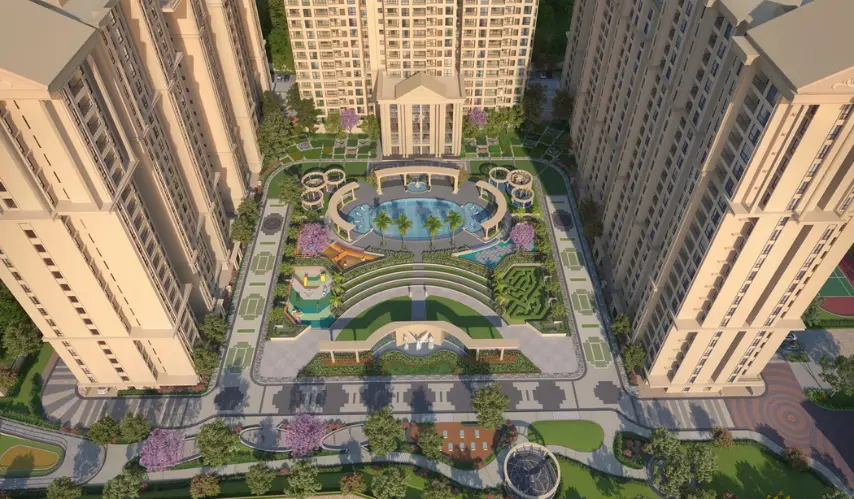

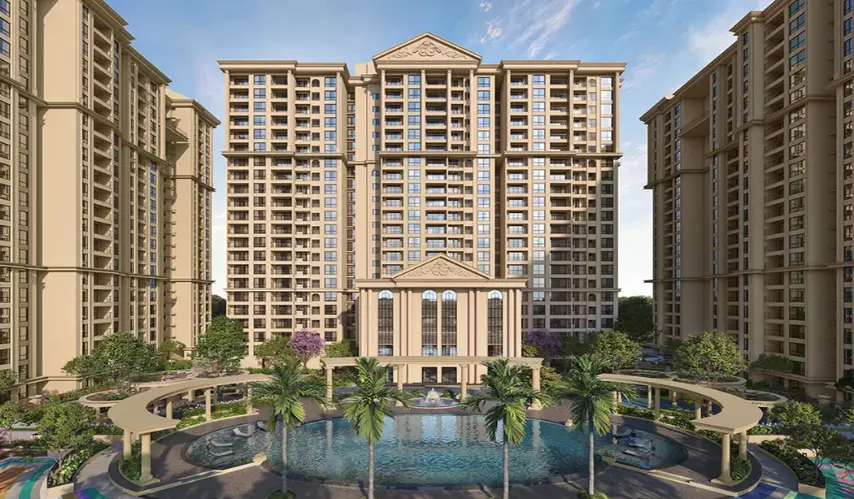

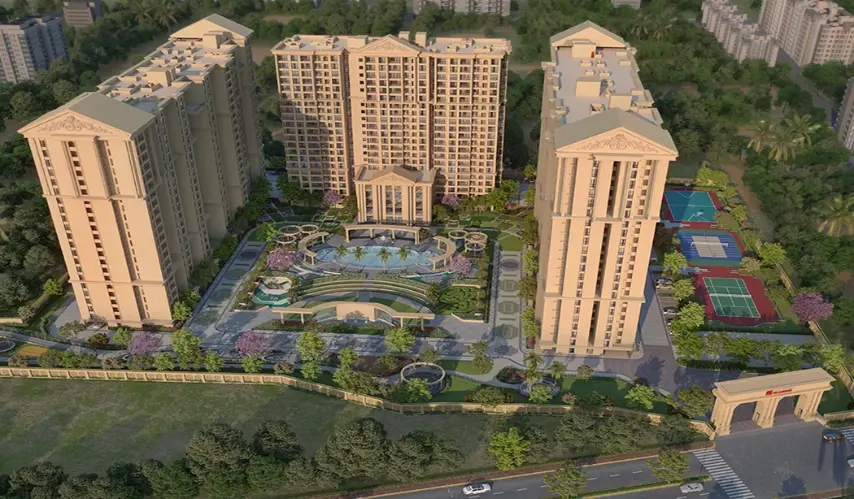

The architectural style is heavily influenced by ancient Roman architecture. The traditional designs of the various buildings lend themselves beautifully to this area, giving it a timelessness and, most of all, a sense of grandeur to those who see them. The balance between a luxury experience and a welcoming environment is achieved through the use of well-planned layouts and thoughtfully designed spaces for living.

In total, there are 853 residences comprising 3 and 4 BHK apartments that range in size from 1189 sq ft to 2579 sq ft. Each residence has been built to the highest standard at the same time as using the finest materials, which results in an incredibly luxurious yet cozy environment.

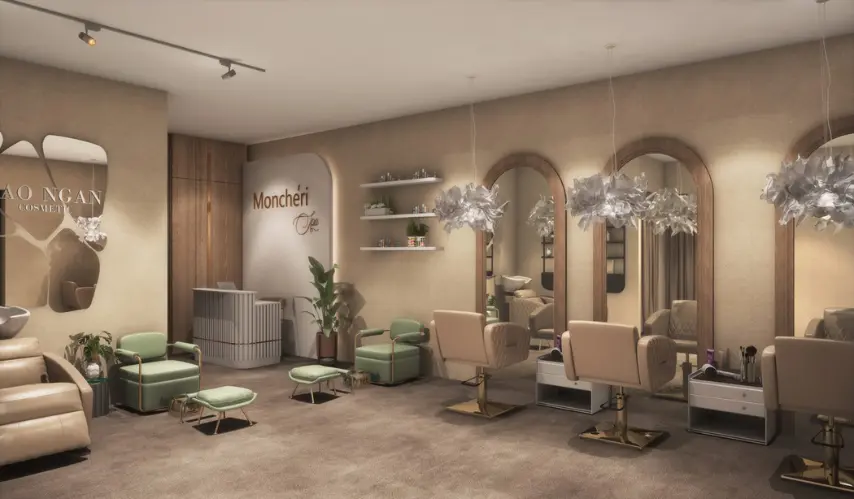

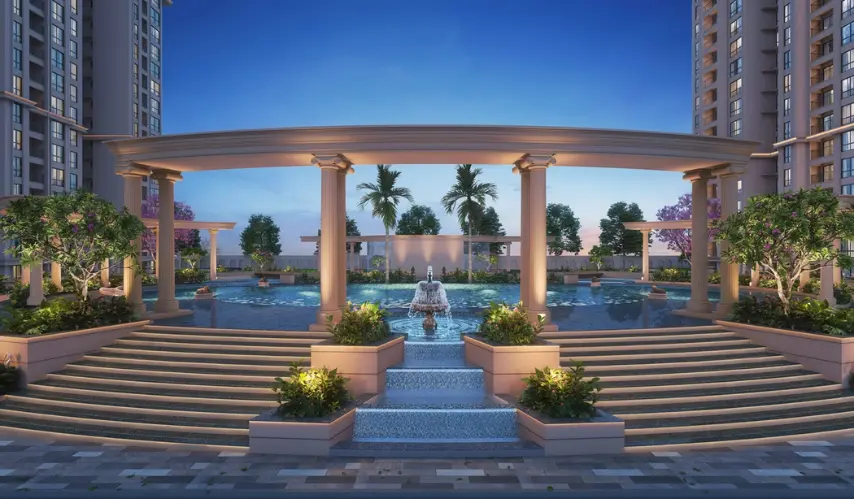

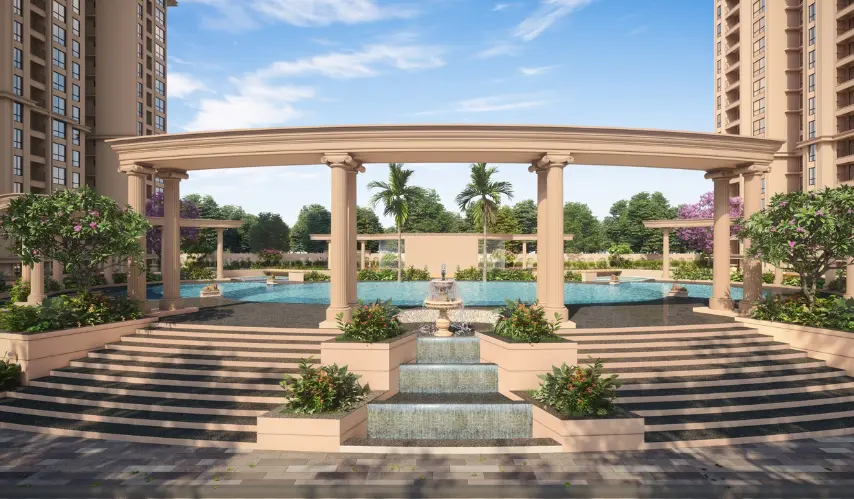

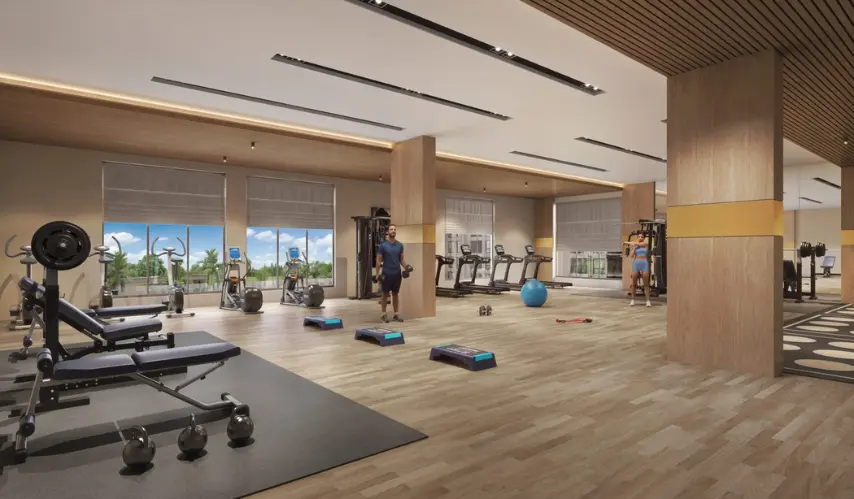

The complete lifestyle experience at Casagrand Massimo in Kundrathur will match the value of its residential properties. The facility provides a clubhouse that covers 24000 square feet and contains more than 70 distinct types of facilities, together with a swimming pool and multiple spaces for community interaction, which create a completely enjoyable experience throughout the entire facility. The design team created these flats by considering your complete lifestyle needs.

SPECIFICATIONS

STRUCTURE

• Structural System :

• RCC Framed Structure designed for seismic compliant (Zone – 3).

Masonry:

• 200mm for external walls & 100mm for internal walls.

• Floor- Floor height (incl. slab) :

• Will be maintained at 2950mm.

WALL FINISH

Internal walls :

• Finished with 2 coats of putty, 1 coat of primer & 2 coats of premium emulsion

Ceiling :

• Finished with 2 coats of putty, 1 coat of primer & 2 coats of tractor emulsion

Exterior walls :

• Finished with 1 coat of primer & 2 coats of exterior emulsion paint & color as per architect design intent

Bathroom :

• Matt/Glossy ceramic wall tile of size 600x1200mm for a height of 2400mm & above the false ceiling will be finished with 1 coat of primer

Toilet ceiling :

• Panel & Grid false ceiling

FLOOR FINISH WITH SKIRTING

• Foyer, Living, Dining, Internal corridor :

• Marble flooring

Bedroom & Kitchen :

• Vitrified tiles of size 1200X600mm

Bathroom :

• Anti-skid ceramic tiles of size 600x600mm

Balcony :

• Wooden finish tile flooring of size 600x1200mm

• Private open terrace (if applicable) :

• Wooden finish tile flooring of size 600x1200mm

KITCHEN & DINING

Electrical point :

• For chimney & water purifier

Dining :

• Granite counter mounted wash basin and wall dado of height 200mm

BALCONY

Handrail :

• MS handrail as per architect’s design intent

Cloth Drying Hanger :

• Ceiling cloth drying hanger rods provided in living balcony.

BATHROOM

Sanitary fixture :

• TOTO or Equivalent

CP fittings :

• TOTO or Equivalent Master Bathroom : Wall mounted WC with cistern ,flush plate and Health faucet, Single lever diverter, Rain shower, hand shower and spout with glass partition, granite counter mounted wash basin and 2’ long trench drain

Other Bathrooms :

• Wall-mounted WC with cistern, flush plate and Health faucet, Single lever diverter, Overhead shower& spout, granite counter mounted wash basin and square designer drain

JOINERY

Doors: Main door :

• Veneer finish full jamb architrave with double sided veneer finish door of size 1100 x 2300mm

• Ironmongeries like Digital lock system of Yale OR equivalent lock, tower bolts, door viewer, Magnetic catcher.

Bedroom doors :

• Laminate finish full jamb architrave with double-sided laminate finish door of size 1000 x 2300mm.

• Ironmongeries like Yale or equivalent lock, door handle, tower bolt, door bush, etc.,

Bathroom doors :

• Good quality door frame with double-sided laminate finish door of size 800 x 2300mm

• Ironmongeries like thumb turn lock of Yale or equivalent without key, door bush, tower bolt, etc.,

WINDOWS Windows :

• Powder coated Aluminum windows with sliding shutter with see- through plain glass and MS grill/railing on the inner side (wherever applicable

• Sill coping with granite

French doors :

• Powder coated Aluminum frame and doors with toughened glass (wherever applicable)

Ventilators :

• Powder coated Aluminum frame of fixed glass/ open-able shutter for ODU access (wherever applicable)

• Sill and Soffit coping with granite.

ELECTRICAL POINTS

Power Supply :

• 3 PHASE power supply connection

Safety device :

• MCB & RCCB (Residual current circuit breaker)

• Switches & sockets :

• Modular box, Switches & sockets of Honeywell or equivalent will be provided

Wires :

• Fire Retardant Low Smoke (FRLS) copper wire of good quality IS brand

• 5 Amp socket (outdoor) :

• Point provided in the balcony in recommended location

Foot lamp :

• Provided in all bedrooms

Fan :

• Point provided in kitchen & Bedroom balcony wherever applicable.

TV :

• Point in Living & any one bedroom and provision in other bedrooms

Data :

• Point in Living & any one bedroom

Split- air conditioner :

• Points in Living / Dining and in all bedrooms

• Exhaust fan : Point in all bathrooms

Geyser :

• Point will be given in all bathrooms

Back-up :

• 1BHK- 350W, 2BHK-400W, 3BHK-500W and 4BHK 650W

COMMON FEATURES

Lift :

• Automatic lift will be provided with MS Finish

Back – up :

• 100% Power backup for common amenities such as Clubhouse, lifts, WTP, STP & common area lighting

Name board :

• Apartment owner name will be provided in ground floor

Lift fascia wall :

• Marble cladding @ ground level & Designer Vitrified tile @ other levels

Lobby flooring :

• Marble flooring @ ground level & Designer Vitrified tile @ other levels

Corridor Flooring :

• Vitrified tile of size 800×1600 at all levels

Staircase floor :

• Granite flooring till 4 floors & Kota at other floors

Staircase handrail :

• MS handrail with enamel paint finish in all floors

Terrace floor :

• Pressed tile flooring

Terrace doors :

• Good quality door frame with FRP shutters

• Ironmongeries like thumb turn lock, door closure, tower bolt, etc., of Godrej / equivalent brand

OUTDOOR FACILITY

Water storage :

• Centralized UG sump with WTP (Min. requirement as per water test report)

• Rain water harvest :

• Rain water harvesting system (As per the site requirement)

STP :

• Centralized Sewage Treatment plant

Safety :

• CCTV surveillance cameras will be provided all round the building at pivotal locations in ground level

Well defined walkway :

• Walkway spaces well defined as per landscape design intent

Security :

• Security booth will be provided at the entrance/exit facilitated with MY GATE App

Compound wall :

• Site perimeter fenced by compound wall with entry gates for a height of 1800mm and Featured Compound wall (wherever applicable) as per design intent

Landscape :

• Suitable landscape at appropriate places in the project as per design intent

Driveway :

• Convex mirror for safe turning in driveway in / out

External Driveway :

• Interlocking paver block or equivalent flooring with demarcated driveway as per landscape design intent.

• Granite flooring finish / Cobble stone in entrance driveway and Block lobby entrance

TECH PARK

• Commerzone - 15 Mins

• MEPZ - Special Economic Zone - 20 Mins

• DLF Cyber City – 20 Mins

• L&T Infotech – 20 Mins

• Smartwork Olympia National Tower - 22 Mins

INDUSTRIAL ESTATE

• Thirumudivakkam Industrial Estate - 15 Mins

• Ambattur Industrial Estate – 30 Mins

SCHOOLS

• Sri Krish International School - 3 Mins

• Madha Matriculation School - 5 Mins

• Kidzee Kundrathur - 5 Mins

• Little flower Mat. Hr. Sec. School - 5 Mins

• Minerva Hightech International School - 5 Mins

• Mangadu Public School - 5 Mins

• Jain Public School - 10 Mins

• Maharishi Vidya Mandir - 10 Mins

• Orchids The International School - 15 Mins

COLLEGES

• Madha Medical College - 3 Mins

• Madha Engineering College - 5 Mins

• Chennai Institute of Technology - 15 Mins

• Saveetha Dental College - 20 Mins

• Sai Ram Engineering College - 20 Mins

• Sri Ramachandra Institute of Highrer Education and Research – 20 Mins

• Cresent College - 20 Mins

• Madras Christian College - 20 Mins

HOSPITALS

• Madha Hospital - 5 Mins

• Saveetha Dental Hospital – 20 Mins

• ACS Hospital – 20 Mins

• Sri Ramachandra Hospital – 20 Mins

• MIOT Hospital - 20 Mins

ENTERTAINMENT

• Parimalam Cinemas - 3 Mins

• SB Cinemas - 15 Mins

• GK Cinemas - 15 Mins

• PVR Aerohub - 20 Mins

• Chandra mall - 20 Mins

• Forum Mall - 20 Mins

BUS STATION

• Kundrathur – 3 Mins

• Iyyappanthangal – 15 Mins

• Porur – 15 Mins

• Chromepet – 23 Mins

• Tambaram - 20 Mins

• Kilambakkam - 25 Mins

RAILWAY STATION

• Ponnamalle Metro Station - 15 Mins

• Tambaram Railway Station - 20 Mins

• Meenambakkam Metro Station - 20 Mins
